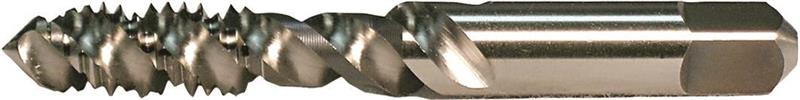

1/4-28 Uncoated 3 Fast Spiral Flutes H3 HSS Bottom Chamfer 1-2 Pitch Tap
- Item Code: 16022
- Brand: WIDIA
- Unit Size: 1
Description
Series 5314
Spiral-FluteTaps
Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Bottoming Chamfer
Tech Specs
Back To Top| Brand | WIDIA |
|---|---|
| Product Name | Tap |
| Unit of Measure | Inch |
| Number of Flutes | 3 |
| Overall Length | 2-1/2 Inch |
| Shank Style | Square |
| Threads Per Inch | 28 |
| Hand of Tool | Right Hand |
| Shank Diameter | 0.2550 Inch |
| Material | HSS |
| Thread Type | NF/UNF/UNJF |
| Coating | Uncoated |
| Diameter | 1/4 - 28 |
| Flute Style | Helix |
| Thread Limit | H3 |
| Chamfer | Bottoming |
| Square Size | 0.1910 Inch |
| Thread Length | 0.6250 Inch |
