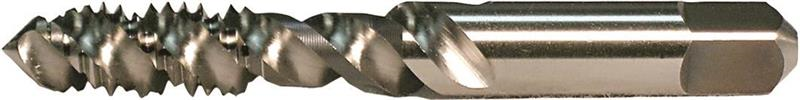

5/16-18 Uncoated 3 Fast Spiral Flutes H3 HSS Bottom Chamfer 1-2 Pitch Tap
- Item Code: 16024
- Brand: WIDIA
- Unit Size: 1
Description
Series 5314
Spiral-FluteTaps
Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Bottoming Chamfer
Tech Specs
Back To Top| Flute Style | Helix |
|---|---|
| Hand of Tool | Right Hand |
| Threads Per Inch | 18 |
| Chamfer | Bottoming |
| Thread Type | NC/UNC/UNJC |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Overall Length | 2-23/32 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Material | HSS |
| Thread Limit | H3 |
| Coating | Uncoated |
| Product Name | Tap |
| Shank Diameter | 0.3180 Inch |
| Square Size | 0.2380 Inch |
| Thread Length | 0.6850 Inch |
| Diameter | 5/16 - 18 |
