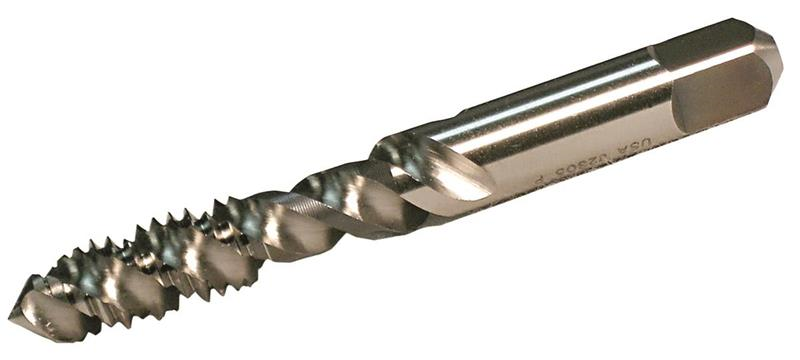

M3 x 0.50 HSS Uncoated 2-Flute D3 Bottoming Spiral-Flute Tap
- Item Code: 16054
- Brand: WIDIA
- Unit Size: 1
Description
Series 5364
Bottoming Chamfer
Blind Holes in Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Flute Style | Helix |
|---|---|
| Hand of Tool | Right Hand |
| Shank Diameter | 0.1410 Inch |
| Pitch | 0.50 MM |
| Thread Type | METRIC |
| Coating | Uncoated |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Overall Length | 1.9400 Inch |
| Brand | WIDIA |
| Coolant Through (Yes/No) | No |
| Diameter | M3 X 0.5 |
| Shank Style | Square |
| Thread Length | 0.3130 Inch |
| Unit of Measure | Inch |
| Product Name | Tap |
| Thread Limit | D3 |
