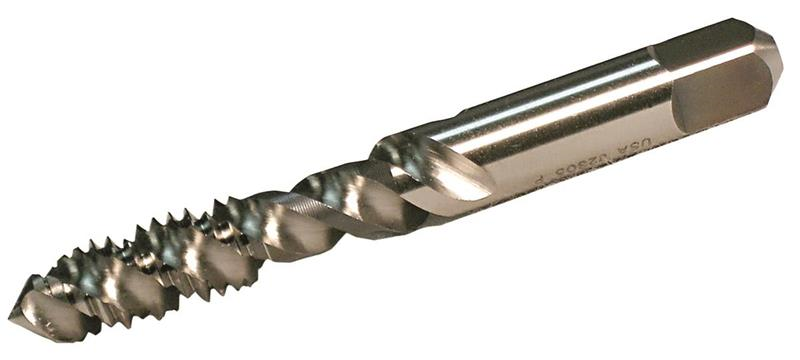

M5 x 0.80 HSS Uncoated 3-Flute D4 Bottoming Spiral-Flute Tap
- Item Code: 16062
- Brand: WIDIA
- Unit Size: 1
Description
Series 5364
Bottoming Chamfer
Blind Holes in Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Coating | Uncoated |
|---|---|
| Overall Length | 2.3800 Inch |
| Shank Diameter | 0.1940 Inch |
| Coolant Through (Yes/No) | No |
| Product Name | Tap |
| Thread Limit | D4 |
| Diameter | M5 X 0.8 |
| Pitch | 0.80 MM |
| Thread Type | METRIC |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Chamfer | Bottoming |
| Thread Length | 0.5000 Inch |
| Flute Style | Helix |
| Hand of Tool | Right Hand |
