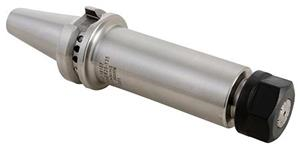

60mm Length, BT30 ER16 Collet Chuck
- Item Code: 16102-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Voted Best Collet Chuck on the Market!
- Balanced to 25,000 RPM at G2.5
- .0001" measured from taper to collet pocket
- Taper ground to AT3 standard
- Individual lab certification included
Tech Specs
Back To Top| Body Diameter-Workpiece Side (mm) | 28 |
|---|---|
| Collet Series | ER16 |
| Gage Length-Face Contact (mm) | 58 |
| Overall Diameter (in) | 1.81 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Capacity Range (in) | 0.019" - 0.41" |
| Taper | BT30 |
| Lock Nut Diameter (in) | 1.26 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length-Face Contact (in) | 2.28 |
| Overall Length (mm) | 108.2 |
| Gage Length (in) | 2.36 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
| Unit of Tool | Metric or Inch |
| Gage Length (mm) | 60 |
| Lock Nut Diameter (mm) | 32 |
| Overall Length (in) | 4.26 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
