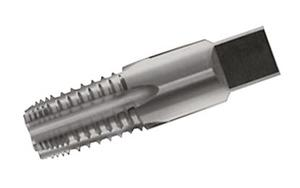

1/4-18 Uncoated 5 Flute HSS NPT/ANPT Interrupted Thread 2 1/2-3 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16105
- Brand: WIDIA
- Unit Size: 1
Description
Series 5319
NPT/ANPT and NPTF Production Taper Pipe Taps with Interrupted Threads
Features
Back To Top- Production Taps
- Standard Pipe Chamfer
- Standard Projection
Tech Specs
Back To Top| Thread Type | NPT/ANPT |
|---|---|
| Chamfer | Taper |
| Coating | Uncoated |
| Overall Length | 2-7/16 Inch |
| Material | HSS |
| Number of Flutes | 5 |
| Square Size | 0.4210 Inch |
| Thread Length | 1.0625 Inch |
| Type | Pipe |
| Unit of Measure | Inch |
| Brand | WIDIA |
| Diameter | 1/4 - 18 |
| Shank Style | Square |
| Product Name | Tap |
| Shank Diameter | 9/16 Inch |
| Threads Per Inch | 18 |
