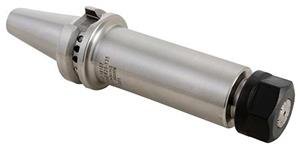

63.5mm Length, BT30 ER20 Collet Chuck
- Item Code: 16108-2.5
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Voted Best Collet Chuck on the Market!
- Balanced to 25,000 RPM at G2.5
- .0001" measured from taper to collet pocket
- Taper ground to AT3 standard
- Individual lab certification included
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 2.42 |
|---|---|
| Gage Length-Face Contact (mm) | 61.5 |
| Overall Length (mm) | 111.8 |
| Capacity Range (in) | 0.019" - 0.55" |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 34 |
| Brand | Techniks |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | BT30 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Collet Series | ER20 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Diameter (in) | 1.81 |
| Overall Length (in) | 4.4 |
| Lock Nut Diameter (in) | 1.38 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (mm) | 63.5 |
| Overall Diameter (mm) | 46 |
| Gage Length (in) | 2.5 |
| Capacity Range (mm) | 0.5 - 14mm |
