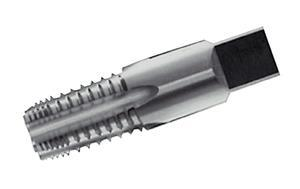

3/8-18 in. HSS Uncoated 5 Flute NPT/ANPT Interrupted Thread 2 1/2-3 1/2 Pitches Chamfered Pipe Tap

  • Item Code: 16108
  • Brand: Widia-Hanita
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series 5319
Type Pipe Tap
Thread Length (mm) 26.99 mm
Thread Length (in.) 1.0625"
Overall Length Metric 65.088 mm
Coating/Finish Uncoated
Thread Diameter 3/8"
Cutting Direction Right
Chamfer Plug
Thread Diameter (mm) 9.53 mm
Material HSS
Number of Flutes 5
Thread Size 3/8 - 18
Coolant Through No
Thread Diameter (in.) 0.3750"
Adapter/Shank/Bore Dia (in.) 0.7000"
Adapter/Shank/Bore Dia (mm) 17.78 mm
Brand Widia-Hanita
Overall Length Inches 2.5625"
