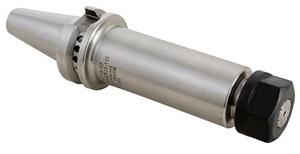

60mm Length, BT30 ER25 Collet Chuck
- Item Code: 16110-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Voted Best Collet Chuck on the Market!
- Balanced to 25,000 RPM at G2.5
- .0001" measured from taper to collet pocket
- Taper ground to AT3 standard
- Individual lab certification included
Tech Specs
Back To Top| Gage Length (in) | 2.36 |
|---|---|
| Body Diameter-Workpiece Side (in) | 1.654 |
| Unit of Tool | Metric or Inch |
| Gage Length (mm) | 60 |
| Overall Diameter (mm) | 46 |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (mm) | 42 |
| Gage Length-Face Contact (mm) | 58 |
| Material | 8620 Steel |
| Style | Single Ended |
| Capacity Range (in) | 0.039" - 0.75" |
| Gage Length-Face Contact (in) | 2.28 |
| Lock Nut Diameter (in) | 1.65 |
| Overall Length (in) | 4.26 |
| Overall Length (mm) | 108.2 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Capacity Range (mm) | 1 - 19.1mm |
| Collet Series | ER25 |
| Lock Nut Diameter (mm) | 41.9 |
| Overall Diameter (in) | 1.81 |
| Taper | BT30 |
