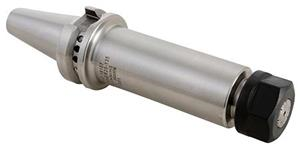

90mm Length, BT30 ER25 Collet Chuck
- Item Code: 16111-90
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Voted Best Collet Chuck on the Market!
- Balanced to 25,000 RPM at G2.5
- .0001" measured from taper to collet pocket
- Taper ground to AT3 standard
- Individual lab certification included
Tech Specs
Back To Top| Body Diameter-Workpiece Side (mm) | 42 |
|---|---|
| Gage Length-Face Contact (mm) | 88 |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | BT30 |
| Body Diameter-Workpiece Side (in) | 1.654 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Capacity Range (in) | 0.039" - 0.75" |
| Brand | Techniks |
| Collet Series | ER25 |
| Gage Length-Face Contact (in) | 3.46 |
| Lock Nut Diameter (mm) | 41.9 |
| Overall Diameter (in) | 1.81 |
| Capacity Range (mm) | 1 - 19.1mm |
| Gage Length (mm) | 90 |
| Overall Length (in) | 5.44 |
| Balanced to | 25,000 RPM at G2.5 |
| Lock Nut Diameter (in) | 1.65 |
| Overall Length (mm) | 138.2 |
| Gage Length (in) | 3.54 |
| Overall Diameter (mm) | 46 |
