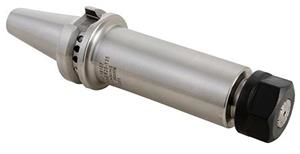

60mm Length, BT30 ER32 Collet Chuck
- Item Code: 16112-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Voted Best Collet Chuck on the Market!
- Balanced to 25,000 RPM at G2.5
- .0001" measured from taper to collet pocket
- Taper ground to AT3 standard
- Individual lab certification included
Tech Specs
Back To Top| Gage Length (mm) | 60 |
|---|---|
| Overall Length (mm) | 108.2 |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | BT30 |
| Gage Length-Face Contact (mm) | 58 |
| Collet Series | ER32 |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (in) | 2.36 |
| Overall Diameter (mm) | 46 |
| Overall Length (in) | 4.26 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 2.28 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (in) | 0.043" - 0.83" |
| Capacity Range (mm) | 1.1 - 21mm |
| Overall Diameter (in) | 1.81 |
