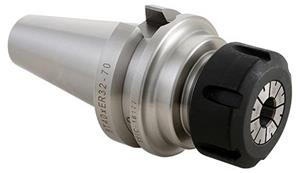

60mm Length, BT30 ER32 41mm Flats - Komo Collet Chuck
- Item Code: 16121
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured from taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 2.28 |
|---|---|
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Capacity Range (in) | 0.043" - 0.83" |
| Capacity Range (mm) | 1.1 - 21mm |
| Collet Series | ER32 |
| Gage Length (in) | 2.36 |
| Overall Diameter (mm) | 46 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Gage Length-Face Contact (mm) | 58 |
| Material | 8620 Steel |
| Style | Single Ended |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Gage Length (mm) | 60 |
| Overall Length (in) | 4.26 |
| Overall Length (mm) | 108.2 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Overall Diameter (in) | 1.81 |
| Taper | BT30 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
