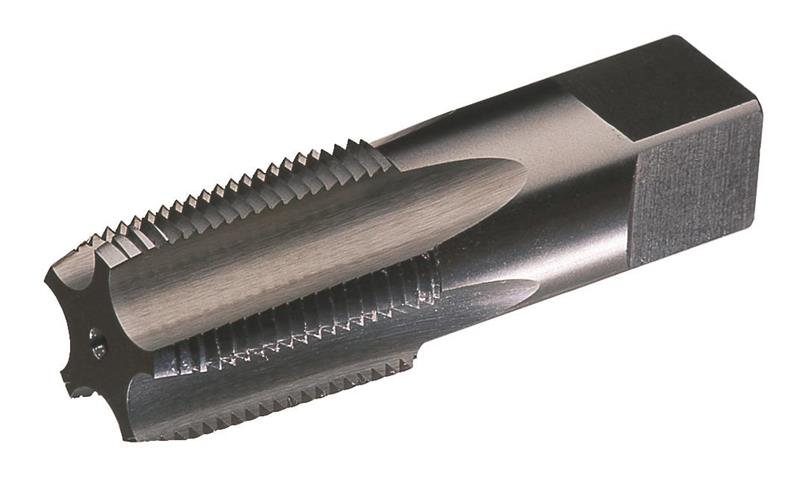

1/4-18 Uncoated 4 Flute HSS NPT/ANPT High Hook 2 1/2-3 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16213
- Brand: WIDIA
- Unit Size: 1
Description
Series 5820
NPT/ANPT and NPTF High-Hook Production Taper Pipe Taps
Features
Back To Top- Production Taps
- Standard Pipe Chamfer
- Standard Projection
Tech Specs
Back To Top| Overall Length | 61.976 MM |
|---|---|
| Shank Diameter | 0.5630 Inch |
| Brand | WIDIA |
| Diameter | 1/4 - 18 |
| Shank Style | Square |
| Threads Per Inch | 18 |
| Unit of Measure | Inch |
| Coating | Uncoated |
| Coolant Through (Yes/No) | Yes |
| Product Name | Tap |
| Thread Length | 27.00 MM |
| Number of Flutes | 4 |
| Thread Type | NPT/ANPT |
| Type | Pipe |
