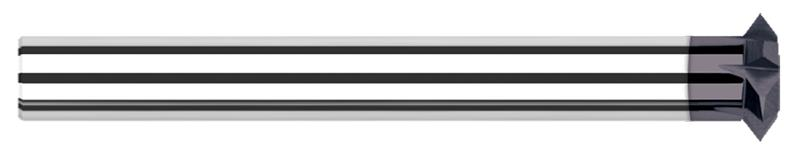

0.7500 in. (3/4) Cutter Diameter x 0.1440 in. Width 8 Flute AlTiN Coated Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 16220-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length Decimal 3.6440"
Cutter Width 0.1440"
Decimal Cutting Diameter 0.7500"
Angle per Side 30
Material Solid Carbide
Number of Flutes 8
Brand Harvey Tool
Shank Diameter 0.5000" (1/2)
Coating AlTiN
Included Angle 60
Fractional Cutting Diameter 3/4"
