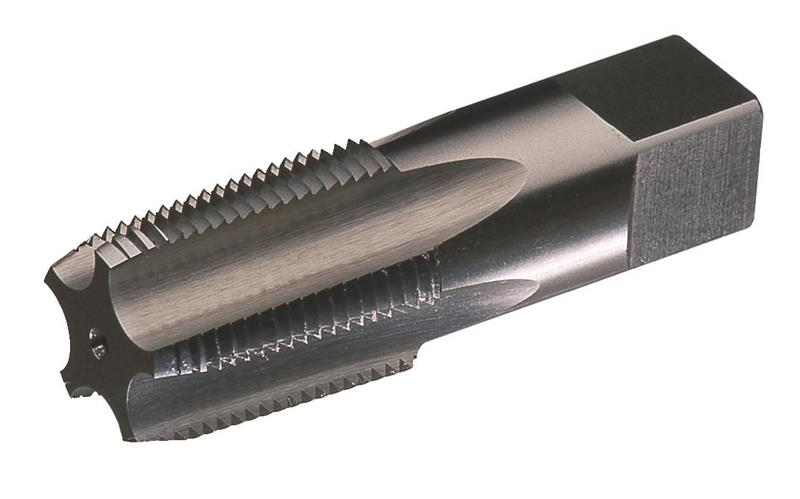

3/4-14 Uncoated 5 Flute HSS NPT/ANPT High Hook 2 1/2-3 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16228
- Brand: WIDIA
- Unit Size: 1
Description
Series 5820
NPT/ANPT and NPTF High-Hook Production Taper Pipe Taps
Features
Back To Top- Production Taps
- Standard Pipe Chamfer
- Standard Projection
Tech Specs
Back To Top| Shank Diameter | 0.9060 Inch |
|---|---|
| Thread Length | 34.925 MM |
| Number of Flutes | 5 |
| Threads Per Inch | 14 |
| Overall Length | 3.2500 Inch |
| Product Name | Tap |
| Thread Type | NPT/ANPT |
| Diameter | 3/4 - 14 |
| Type | Pipe |
| Brand | WIDIA |
| Coating | Uncoated |
| Unit of Measure | Inch |
| Coolant Through (Yes/No) | Yes |
| Shank Style | Square |
