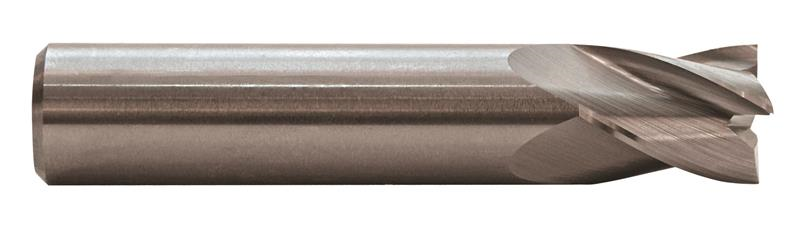

1mm Diameter Stub Length Solid Carbide TuffCut® General Purpose 4-Flute Square End Mill
- Item Code: 16303940
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 163
Center Cutting
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Features
Back To Top- 30 Degree helix
- Designed for aggresssive milling of most materials with reduced deflection and improved tool life and overall economy
Tech Specs
Back To Top| Length of Cut | 2.0mm |
|---|---|
| Brand | MA Ford |
| Helix Angle | 30° |
| Overall Length | 38mm |
| Shank Diameter | 3.0mm |
| Coating/Finish | None |
| Decimal Diameter | 0.0394" |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Metric Diameter | 1.00 mm |
| Series | Tuff Cut® GP |
| Type | End Mill |
