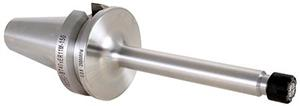

150mm, BT40 ER11 Mini Nut Holder
- Item Code: 16324
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Narrow nut for better clearance!
- Balanced to 25,000 RPM at G2.5
- 0.0001" runout from taper to pocket
- Individual lab certification included
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 5.83 |
|---|---|
| Gage Length-Face Contact (mm) | 148 |
| Overall Length (mm) | 215.4 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 0.748 |
| Overall Length (in) | 8.48 |
| Body Diameter-Workpiece Side (mm) | 19 |
| Collet Series | ER11 |
| Unit of Tool | Metric or Inch |
| Brand | Techniks |
| Gage Length (mm) | 150 |
| Overall Diameter (mm) | 63 |
| Taper | BT40 |
| Lock Nut Diameter (mm) | 19.1 |
| Lock Nut Diameter (in) | 0.75 |
| Capacity Range (in) | 0.019" - 0.28" |
| Capacity Range (mm) | 0.5 - 7.1mm |
| Material | 8620 Steel |
| Gage Length (in) | 5.91 |
| Overall Diameter (in) | 2.48 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
