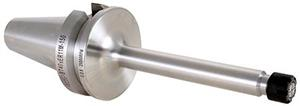

70mm, BT40 ER16 Mini Nut Holder
- Item Code: 16325
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Narrow nut for better clearance!
- Balanced to 25,000 RPM at G2.5
- 0.0001" runout from taper to pocket
- Individual lab certification included
Tech Specs
Back To Top| Gage Length (mm) | 70 |
|---|---|
| Capacity Range (mm) | 0.5 - 10.5mm |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (in) | 0.019" - 0.41" |
| Gage Length-Face Contact (mm) | 68 |
| Unit of Tool | Metric or Inch |
| Gage Length-Face Contact (in) | 2.68 |
| Type | V-Flange Collet Chuck |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.48 |
| Overall Length (in) | 5.33 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Lock Nut Diameter (in) | 1.26 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Overall Diameter (mm) | 63 |
| Overall Length (mm) | 135.4 |
| Gage Length (in) | 2.76 |
| Lock Nut Diameter (mm) | 32 |
| Taper | BT40 |
