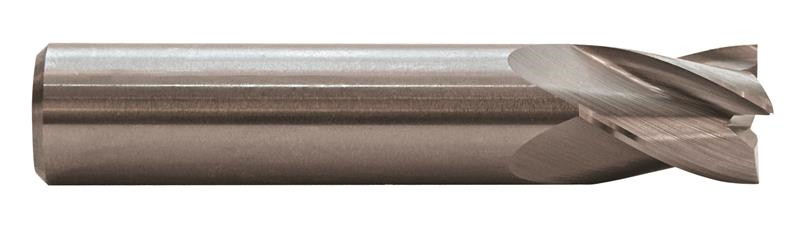

1/4 Inch Diameter Stub Length Solid Carbide TiAlN Coated TuffCut® General Purpose 4-Flute Square End Mill
- Item Code: 16325000A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 163
Center Cutting
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Features
Back To Top- 30 Degree helix
- Designed for aggresssive milling of most materials with reduced deflection and improved tool life and overall economy
Tech Specs
Back To Top| Decimal Diameter | 0.2500" |
|---|---|
| Length of Cut | 1/2 Inch |
| Shank Diameter | 1/4 Inch |
| Coating/Finish | AlTiN |
| Fractional Diameter | 1/4" |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Brand | MA Ford |
| Overall Length | 2 Inch |
| Series | Tuff Cut® GP |
| Type | End Mill |
