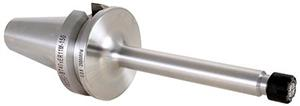

150mm, BT40 ER16 Mini Nut Holder
- Item Code: 16328
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Narrow nut for better clearance!
- Balanced to 25,000 RPM at G2.5
- 0.0001" runout from taper to pocket
- Individual lab certification included
Tech Specs
Back To Top| Capacity Range (mm) | 0.5 - 10.5mm |
|---|---|
| Gage Length (mm) | 150 |
| Gage Length-Face Contact (mm) | 148 |
| Overall Diameter (mm) | 63 |
| Taper | BT40 |
| Lock Nut Diameter (mm) | 32 |
| Capacity Range (in) | 0.019" - 0.41" |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 5.83 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Overall Length (in) | 8.48 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Lock Nut Diameter (in) | 1.26 |
| Gage Length (in) | 5.91 |
| Overall Diameter (in) | 2.48 |
| Overall Length (mm) | 215.4 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Material | 8620 Steel |
| Unit of Tool | Metric or Inch |
