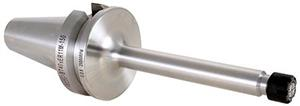

100mm, BT40 ER20 Mini Nut Holder
- Item Code: 16330-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Narrow nut for better clearance!
- Balanced to 25,000 RPM at G2.5
- 0.0001" runout from taper to pocket
- Individual lab certification included
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 3.86 |
|---|---|
| Overall Length (in) | 6.51 |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (mm) | 34 |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length (in) | 3.94 |
| Gage Length (mm) | 100 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 63 |
| Overall Length (mm) | 165.4 |
| Style | Single Ended |
| Taper | BT40 |
| Balanced to | 25,000 RPM at G2.5 |
| Overall Diameter (in) | 2.48 |
| Lock Nut Diameter (mm) | 35.1 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Collet Series | ER20 |
| Gage Length-Face Contact (mm) | 98 |
| Capacity Range (in) | 0.019" - 0.55" |
| Lock Nut Diameter (in) | 1.38 |
