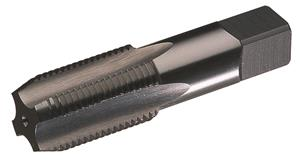

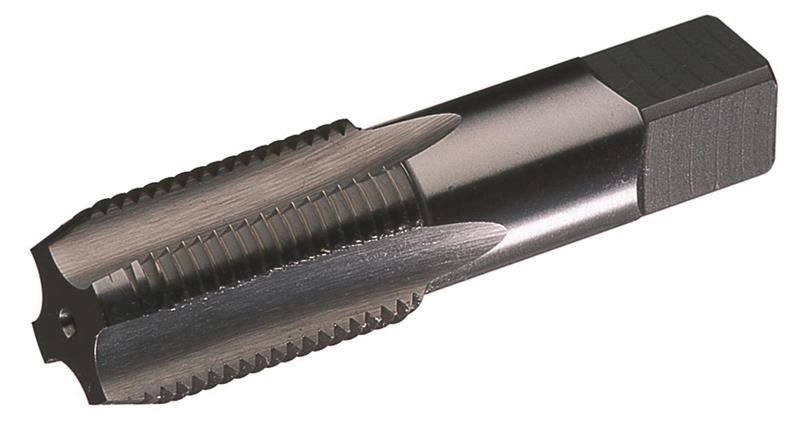

1/8-27 Uncoated 4 Flute HSS NPSF Modified Bottom 2-2 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16353
- Brand: WIDIA
- Unit Size: 1
Description
Series 5323
NPS and NPSF Straight-PipeTaps
Features
Back To Top- Production Taps
- Modified Bottoming Chamfer
Tech Specs
Back To Top| Product Name | Tap |
|---|---|
| Shank Diameter | 5/16 Inch |
| Shank Style | Square |
| Brand | WIDIA |
| Thread Type | NPSF |
| Unit of Measure | Inch |
| Coating | Uncoated |
| Material | HSS |
| Number of Flutes | 4 |
| Thread Length | 0.7500 Inch |
| Threads Per Inch | 27 |
| Chamfer | Taper |
| Diameter | 1/8 - 27 |
| Square Size | 0.2340 Inch |
| Type | Pipe |
| Overall Length | 2-1/8 Inch |
