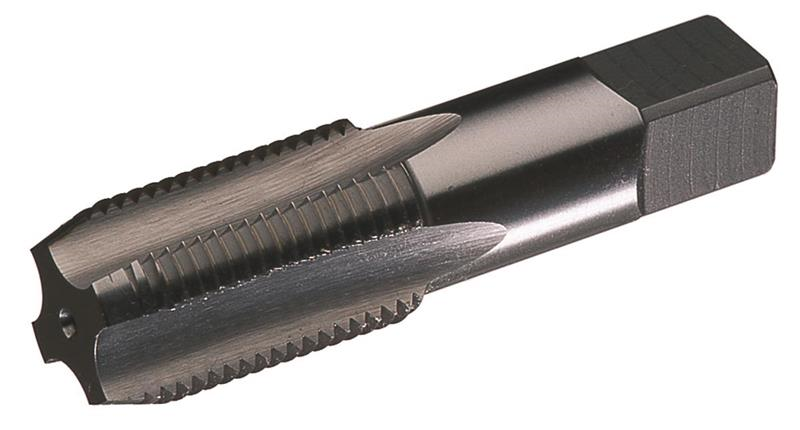

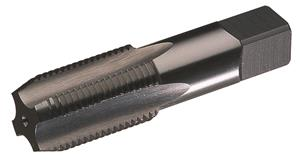

3/8-18 Uncoated 4 Flute HSS NPS Modified Bottom 2-2 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16357
- Brand: WIDIA
- Unit Size: 1
Description
Series 5323
NPS and NPSF Straight-PipeTaps
Features
Back To Top- Production Taps
- Modified Bottoming Chamfer
Tech Specs
Back To Top| Shank Diameter | 0.7000 Inch |
|---|---|
| Thread Type | NPS |
| Square Size | 0.5310 Inch |
| Material | HSS |
| Number of Flutes | 4 |
| Product Name | Tap |
| Type | Pipe |
| Thread Length | 1.0625 Inch |
| Threads Per Inch | 18 |
| Brand | WIDIA |
| Chamfer | Taper |
| Coating | Uncoated |
| Unit of Measure | Inch |
| Diameter | 3/8 - 18 |
| Overall Length | 2-9/16 Inch |
| Shank Style | Square |
