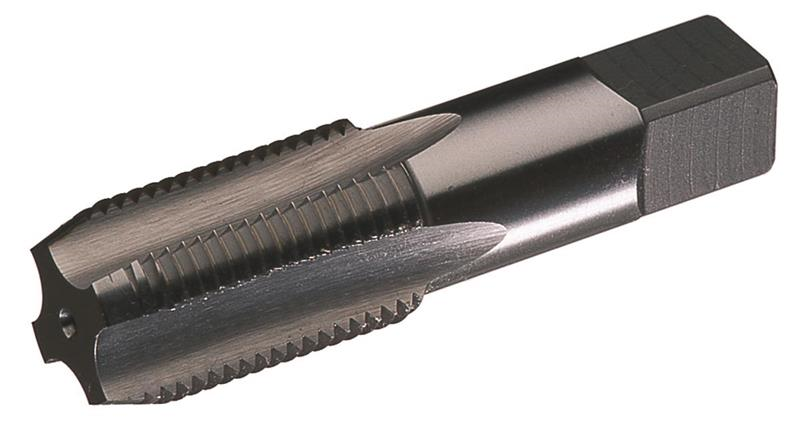

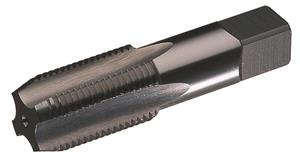

1/2-14 Uncoated 4 Flute HSS NPS Modified Bottom 2-2 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16359
- Brand: WIDIA
- Unit Size: 1
Description
Series 5323
NPS and NPSF Straight-PipeTaps
Features
Back To Top- Production Taps
- Modified Bottoming Chamfer
Tech Specs
Back To Top| Coating | Uncoated |
|---|---|
| Number of Flutes | 4 |
| Thread Length | 1.6562 Inch |
| Type | Pipe |
| Brand | WIDIA |
| Chamfer | Taper |
| Shank Diameter | 11/16 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Overall Length | 3-1/8 Inch |
| Square Size | 0.2750 Inch |
| Diameter | 1/2 - 14 |
| Material | HSS |
| Product Name | Tap |
| Thread Type | NPS |
| Threads Per Inch | 14 |
