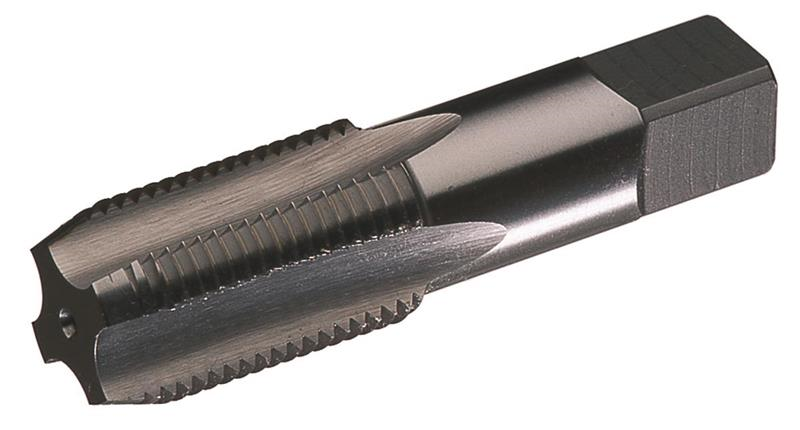

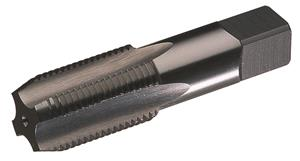

3/4-14 Uncoated 5 Flute HSS NPS Modified Bottom 2-2 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16361
- Brand: WIDIA
- Unit Size: 1
Description
Series 5323
NPS and NPSF Straight-PipeTaps
Features
Back To Top- Production Taps
- Modified Bottoming Chamfer
Tech Specs
Back To Top| Chamfer | Taper |
|---|---|
| Coating | Uncoated |
| Overall Length | 3-1/4 Inch |
| Brand | WIDIA |
| Diameter | 3/4 - 14 |
| Shank Style | Square |
| Square Size | 0.6790 Inch |
| Type | Pipe |
| Unit of Measure | Inch |
| Shank Diameter | 29/32 Inch |
| Product Name | Tap |
| Material | HSS |
| Number of Flutes | 5 |
| Thread Length | 1.3750 Inch |
| Threads Per Inch | 14 |
| Thread Type | NPS |
