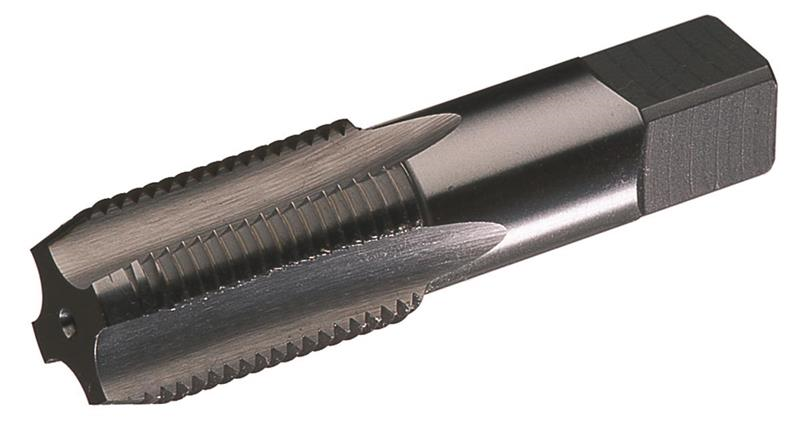

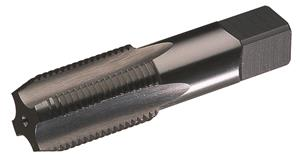

1-11 1/2 Uncoated 5 Flute HSS NPS Modified Bottom 2-2 1/2 Pitches Chamfered Pipe Tap
- Item Code: 16363
- Brand: WIDIA
- Unit Size: 1
Description
Series 5323
NPS and NPSF Straight-PipeTaps
Features
Back To Top- Production Taps
- Modified Bottoming Chamfer
Tech Specs
Back To Top| Thread Type | NPS |
|---|---|
| Chamfer | Taper |
| Square Size | 0.8430 Inch |
| Material | HSS |
| Thread Length | 1.7500 Inch |
| Brand | WIDIA |
| Shank Style | Square |
| Threads Per Inch | 11-1/2 |
| Unit of Measure | Inch |
| Diameter | 1 - 11-1/2 |
| Type | Pipe |
| Number of Flutes | 5 |
| Product Name | Tap |
| Overall Length | 3-3/4 Inch |
| Coating | Uncoated |
| Shank Diameter | 1-1/8 Inch |
