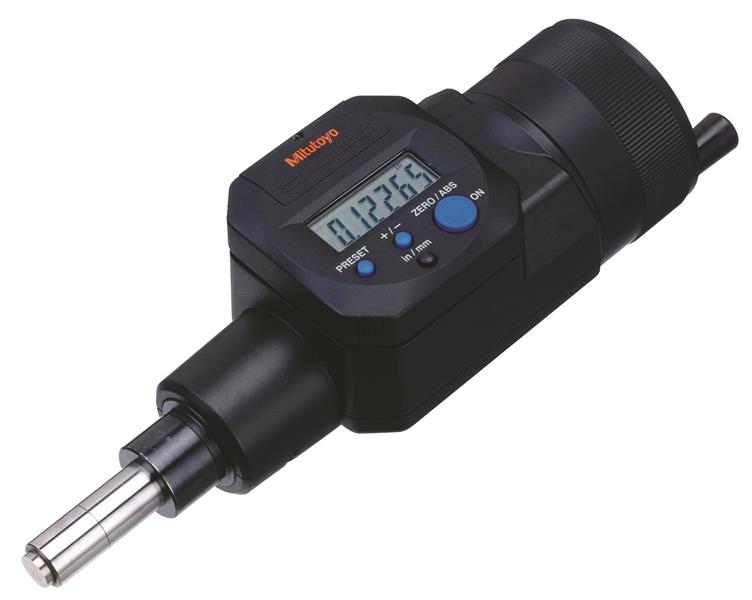

2 In (50.8mm), 0.0005 Inch (0.01mm), Digimatic Micrometer Head, With SPC Data Output, 330 Degree Rotating Face

  • Item Code: 164-164
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The display can be rotated up to 330 degrees for easy reading in ay position.
    • Functions include zero setting, data hold, data output, preset and inch/metric conversion

Tech Specs

Back To Top
Case Part Number 04MAA482
Range 0 - 2 In / 0 - 50.8mm
Data Output Cable - 80 inch 959150
Primary Measuring Range Lower - Inch 0 In
Accuracy ±.00015 In
Data Output Y
Data Output Cable - 40 inch 959149
Individual or Set Individual
Mechanical or Digital Digital
Brand Mitutoyo
Case Material Plastic Case
Primary Measuring Range Lower - Metric 0
Resolution or Graduation .00005 In
Primary Measuring Range Upper - Inch 2 In
Primary Measuring Range Upper - Metric 50.8mm
