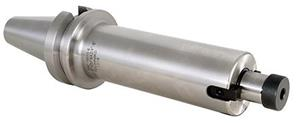

1 Inch - 3 Inch, BT50 Face Mill Arbor
- Item Code: 16639-3
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Features
Back To Top- Compatible with all face mills
- H6 arbor tolerance for less chatter and better tool life
- Taper ground to AT3 tolerance for maximum spindle contact
Tech Specs
Back To Top| Body Width (in) | 1.97 |
|---|---|
| Body Width (mm) | 50 |
| Gage Length-Face Contact (in) | 2.882 |
| Gage Length-Face Contact (mm) | 73.2 |
| Pilot Length (in) | 0.79 |
| Pilot Length (mm) | 20.1 |
| Coolant Supply | Optional through Arbor Screw |
| Overall Diameter (in) | 3.94 |
| Hub Diameter (in) | 1 |
| Hub Diameter (mm) | 25.4 |
| Brand | Techniks |
| Type | Face Mill Arbor |
| Taper Type | BT50 |
| Gage Length (mm) | 76.2 |
| Style | Single Ended |
| Gage Length (in) | 3 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 100.1 |
