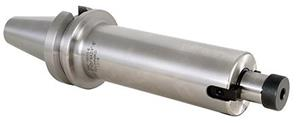

2 Inch - 2.95 Inch, BT50 Face Mill Arbor
- Item Code: 16648
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Features
Back To Top- Compatible with all face mills
- H6 arbor tolerance for less chatter and better tool life
- Taper ground to AT3 tolerance for maximum spindle contact
Tech Specs
Back To Top| Gage Length (mm) | 74.9 |
|---|---|
| Gage Length-Face Contact (in) | 2.832 |
| Gage Length-Face Contact (mm) | 71.9 |
| Hub Diameter (mm) | 50.8 |
| Hub Diameter (in) | 2 |
| Taper Type | BT50 |
| Overall Diameter (in) | 3.94 |
| Type | Face Mill Arbor |
| Body Width (in) | 4.88 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 100.1 |
| Pilot Length (mm) | 23.9 |
| Body Width (mm) | 124 |
| Coolant Supply | Optional through Arbor Screw |
| Gage Length (in) | 2.95 |
| Style | Single Ended |
| Brand | Techniks |
| Pilot Length (in) | 0.94 |
