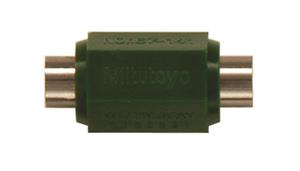

1 Inch Long, Micrometer Standard Bar, 1/4 Inch Diameter

  • Item Code: 167-141
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Used for the zero point setting of outside micrometers.
    • Flat and lapped measuring faces.
    • Heat insulating handle to prevent expansion due to body temperature.

Tech Specs

Back To Top
Accuracy ±.000005 In
Length Measurement 1 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Contact Point Diameter .25 In
Contact Point Flatness .000012 In
Case Material Cardboard Carton
Parallelism .00008 In
Brand Mitutoyo
Material Steel
Individual or Set Individual
