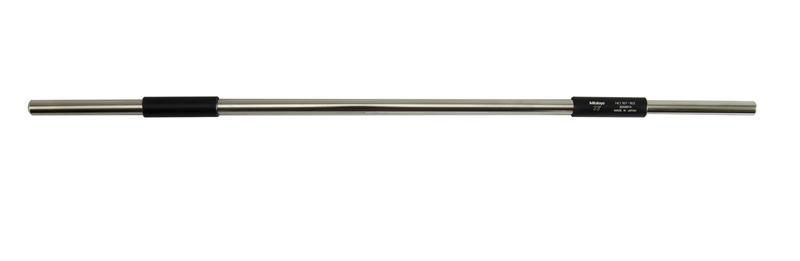

23 Inch, Micrometer Standard Bar, .47 In, Diameter

  • Item Code: 167-163
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Used for the zero point setting of outside micrometers.
    • Flat and lapped measuring faces.
    • Heat insulating handle to prevent expansion due to body temperature.

Tech Specs

Back To Top
Length Measurement 23 In
Individual or Set Individual
Material Steel
Parallelism .00008 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Contact Point Flatness .000012 In
Brand Mitutoyo
Accuracy ±.0003 In
Contact Point Diameter .47 In
Case Material Cardboard Carton
