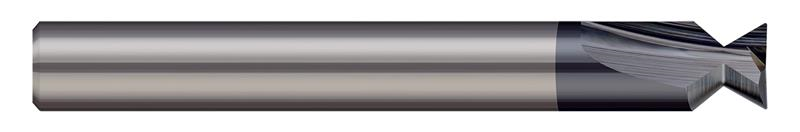

1.0000 in. (1) Cutter Diameter x 0.0100 in. Radius x 60 Deg. Included 4 Flute AlTiN Coated Carbide Tip Radius Dovetail Cutter

  • Item Code: 16764-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.4370" (7/16)
Brand Harvey Tool
Coating/Finish AlTiN
Decimal Cutting Diameter 1.0000"
Angle per Side 30
Material Solid Carbide
Number of Flutes 4
Fractional Cutting Diameter 1"
Included Angle 60
Overall Length 4.0000" (4)
Radius Decimal 0.0100"
Shank Diameter 1.0000" (1)
Length of Cut 0.5000" (1/2)
