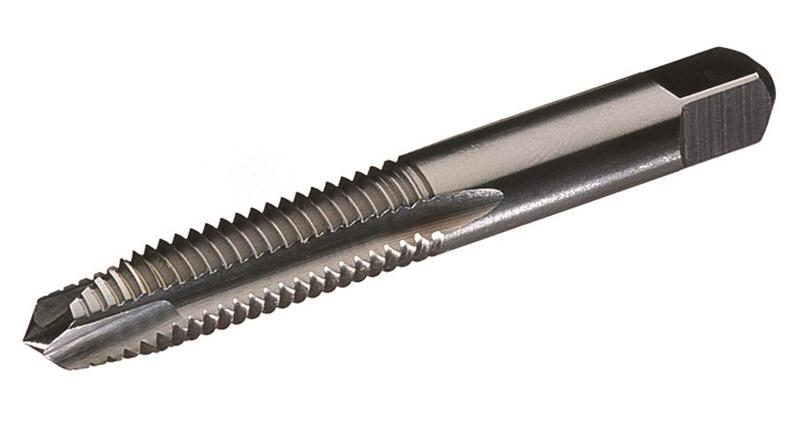

1/4-28 Oxide/Nitride 3 Flute H3 HSS Plug Chamfer 3-5 Pitches Heavy Duty GUN Tap
- Item Code: 16812
- Brand: WIDIA
- Unit Size: 1
Description
Series 5601
Heavy-Duty GUN Taps
Through Holes
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Spiral Point, Plug Chamfer
Tech Specs
Back To Top| Diameter | 1/4 - 28 |
|---|---|
| Thread Length | 25.40 MM |
| Square Size | 0.1910 Inch |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Overall Length | 2.5000 Inch |
| Chamfer | Plug |
| Thread Limit | H3 |
| Product Name | Tap |
| Thread Type | NF/UNF/UNJF |
| Brand | WIDIA |
| Coating | Oxide/Nitride |
| Shank Diameter | 0.2550 Inch |
| Unit of Measure | Inch |
| Coolant Through (Yes/No) | No |
| Number of Flutes | 3 |
| Shank Style | Square |
| Threads Per Inch | 28 |
