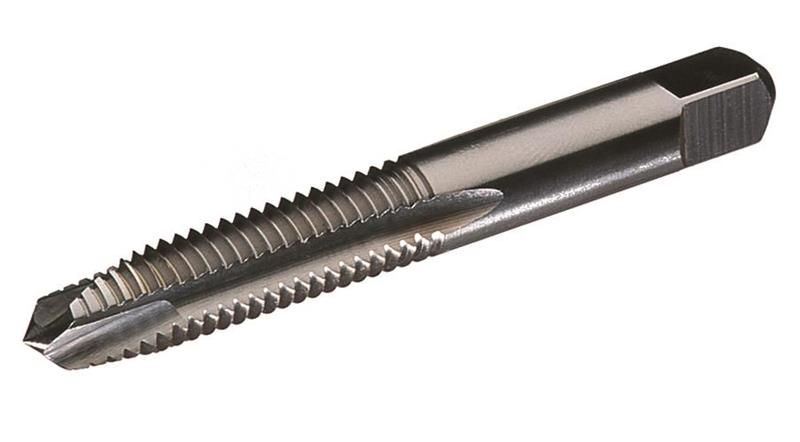

3/8-16 Oxide/Nitride 3 Flute H3 HSS Plug Chamfer 3-5 Pitches Heavy Duty GUN Tap
- Item Code: 16818
- Brand: WIDIA
- Unit Size: 1
Description
Series 5601
Heavy-Duty GUN Taps
Through Holes
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Spiral Point, Plug Chamfer
Tech Specs
Back To Top| Overall Length | 74.676 MM |
|---|---|
| Threads Per Inch | 16 |
| Coating | Oxide/Nitride |
| Diameter | 3/8 - 16 |
| Product Name | Tap |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Coolant Through (Yes/No) | No |
| Thread Length | 31.75 MM |
| Chamfer | Plug |
| Hand of Tool | Neutral |
| Shank Diameter | 0.3810 Inch |
| Thread Limit | H3 |
| Thread Type | NC/UNC/UNJC |
| Flute Style | Straight |
