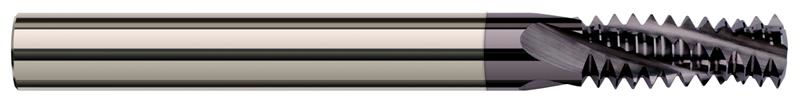

0.1200 in. Cutter Diameter x 0.3120 in. (5/16) Length of Cut 3 Flute AlTiN Coated Carbide Multi-Form M5-0.80 Thread Milling Cutter

  • Item Code: 16911-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts Internal and External 60 degree UN threads
    • Helical Flutes
    • Fractional Shanks
    • Mills Right Hand and Left Hand Threads
    • Able to cut larger threads of the same pitch
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Size M5-0.80
Coating/Finish AlTiN
Cutter Diameter Decimal 0.1200"
Number of Flutes 3
Overall Length 2.0000" (2)
Included Angle 60
Length of Cut 0.3120" (5/16)
Material Solid Carbide
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
