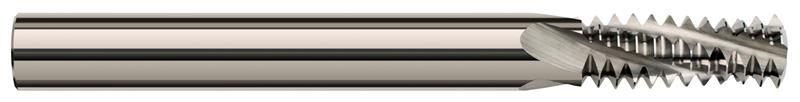

0.1700 in. Cutter Diameter x 0.5000 in. (1/2) Length of Cut 3 Flute Carbide Multi-Form M6-1.00 Thread Milling Cutter

  • Item Code: 16917-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts Internal and External 60 Degree UN Threads
    • Helical Flutes
    • Fractional Shanks
    • Mills Right Hand and Left Hand Threads
    • Able to cut larger threads of the same pitch
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Cutter Diameter Decimal 0.1700"
Included Angle 60
Shank Diameter 0.1875" (3/16)
Size M6-1.00
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Length of Cut 0.5000" (1/2)
