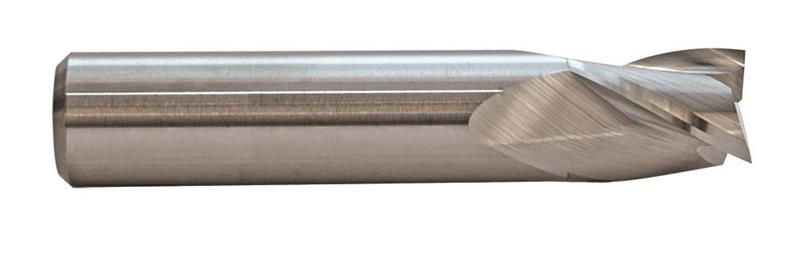

13/64 Inch Diameter TuffCut® General Purpose 3-Flute End Mill Stub
- Item Code: 16920310
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 169
Center Cutting
Designed for aggressive milling of most materials.
Provides reduced deflection, improved tool life and overall economy.
Features
Back To Top- Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Tech Specs
Back To Top| Helix Angle | 30° |
|---|---|
| Shank Diameter | 1/4 Inch |
| Length of Cut | 1/2 Inch |
| Number of Flutes | 3 |
| Overall Length | 2 Inch |
| Series | Tuff Cut® GP |
| Type | End Mill |
| Decimal Diameter | 0.2031" |
| Fractional Diameter | 13/64" |
| Material | Solid Carbide |
| Brand | MA Ford |
