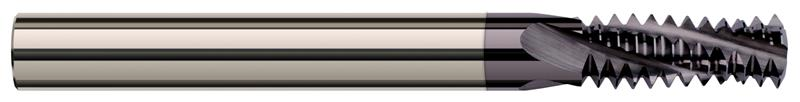

0.3000 in. Cutter Diameter x 0.7500 in. (3/4) Length of Cut 4 Flute AlTiN Coated Carbide Multi-Form M10-1.00 Thread Milling Cutter

  • Item Code: 16930-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts Internal and External 60 deg. UN Threads
    • Helical Flutes
    • Fractional Shanks
    • Mills Right Hand and Left Hand Threads
    • Able to cut larger threads of the same pitch
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 60
Material Solid Carbide
Brand Harvey Tool
Cutter Diameter Decimal 0.3000"
Overall Length 3.0000" (3)
Length of Cut 0.7500" (3/4)
Shank Diameter 0.3125" (5/16)
Coating AlTiN
Size M10-1.00
Number of Flutes 4
