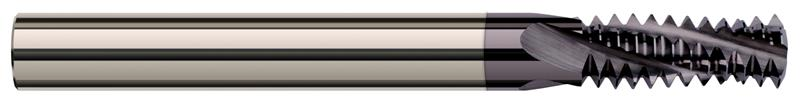

0.4700 in. Cutter Diameter x 1.2500 in. (1-1/4) Length of Cut 4 Flute AlTiN Coated Carbide Multi-Form M16-2.00 Thread Milling Cutter

  • Item Code: 16947-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts Internal and External 60 Degree UN Threads
    • Helical Flutes
    • Fractional Shanks
    • Mills Right Hand and Left Hand Threads
    • Able to cut larger threads of the same pitch
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.4700"
Size M16-2.00
Number of Flutes 4
Included Angle 60
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Length of Cut 1.2500" (1-1/4)
Coating/Finish AlTiN
Brand Harvey Tool
Shank Diameter 0.5000" (1/2)
