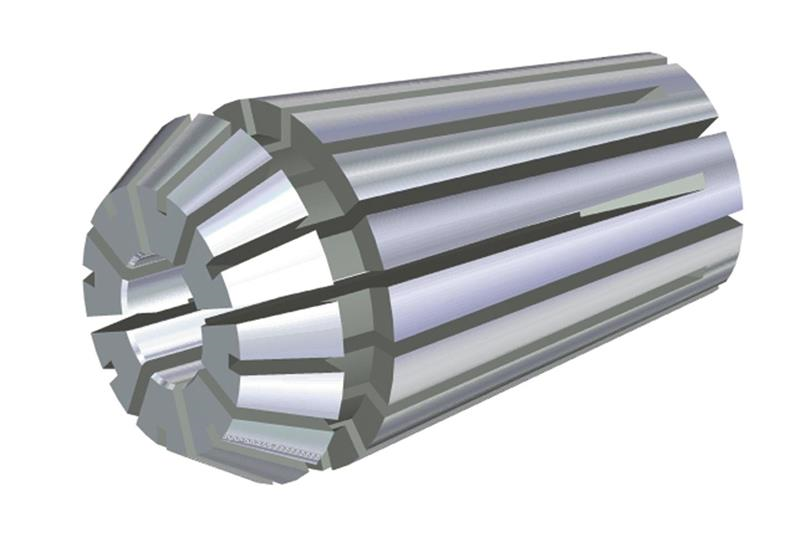

1/8 Inch, 0.085 to 0.125 Inch Collect Capacity, Series ER16 ER Collet
- Item Code: 16ER0125
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER16
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
- ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
Tech Specs
Back To Top| Clamping Diameter (Decimal) | 0.1250 Inch |
|---|---|
| Clamping Diameter (Fractional) | 1/8 Inch |
| Clamping Diameter (Metric) | 3.175 MM |
| Clamping Hole Length | 0.6890 Inch |
| Collet Capacity | 0.0850 - 0.1250 Inch |
| Unit of Measure | Inch |
| Shank Style | Taper |
| Brand | WIDIA-Erickson |
| Body Diameter | 0.6693 Inch |
| Overall Length | 1.0800 Inch |
| Type | Single Angle |
| Product Name | Collet |
