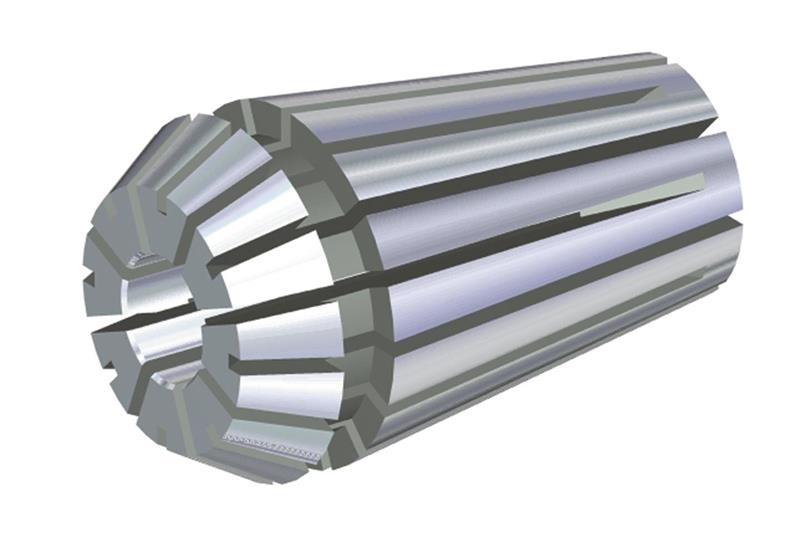

1/4 Inch, 0.21 to 0.25 Inch Collect Capacity, Series ER16 ER Collet
- Item Code: 16ER0250
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER16
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Clamping Diameter (Decimal) | 0.2500 Inch |
|---|---|
| Clamping Diameter (Fractional) | 1/4 Inch |
| Brand | WIDIA-Erickson |
| Collet Capacity | 0.2100 - 0.2500 Inch |
| Unit of Measure | Inch |
| Clamping Diameter (Metric) | 6.35 MM |
| Product Name | Collet |
| Clamping Hole Length | 1.0830 Inch |
| Overall Length | 1.0800 Inch |
| Shank Style | Taper |
| Body Diameter | 0.6693 Inch |
| Type | Single Angle |
