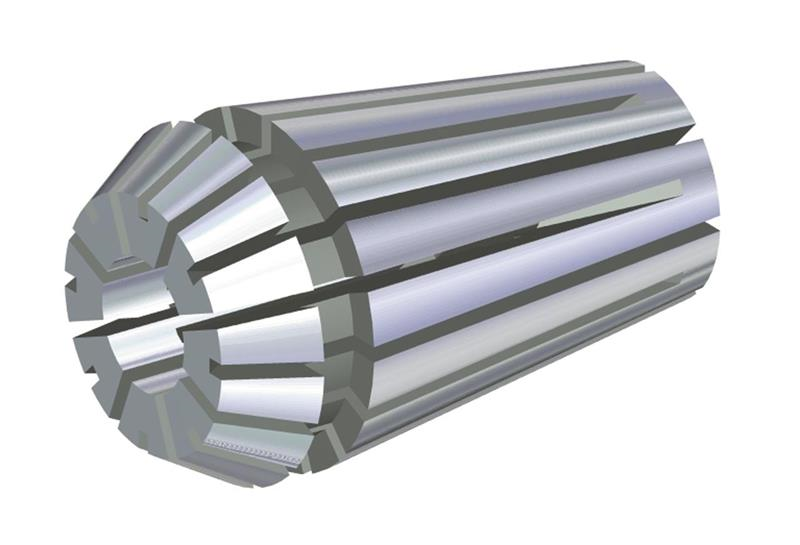

0.255 Inch, Series ER16, 1/4 Inch Tap ER Hand Tap Collet
- Item Code: 16ERTC025
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER16
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Body Diameter | 0.6693 Inch |
|---|---|
| Clamping Diameter (Metric) | 6.477 MM |
| Clamping Hole Length | 0.7100 Inch |
| Brand | WIDIA-Erickson |
| Clamping Diameter (Decimal) | 0.2550 Inch |
| Square Size | 0.1910 Inch |
| Overall Length | 1.0800 Inch |
| Product Name | Collet |
| Shank Style | Taper |
| Unit of Measure | Inch |
| Type | Single Angle |
