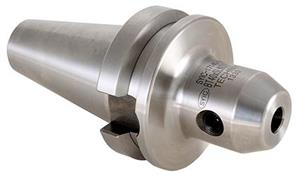

1/8 Inch x 2.5 Inch, BT40 Extended Precision End Mill Holder
- Item Code: 17140-1/8
- Brand: Techniks
- Unit Size: 1
Description
Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks End Mills are balanced to 15,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.
Features
Back To Top- High precision bore (H5) is best in industry
- Balanced to 15,000 RPM at G6.3
- Taper ground to AT3 for maximum spindle contact
- Techniks Certified for bore and taper tolerances
Tech Specs
Back To Top| Bore Inside Diameter (mm) | 3.2 |
|---|---|
| Gage Length (mm) | 63.5 |
| Nose Diameter (in) | 0.68 |
| Type | End Mill Holder |
| Brand | Techniks |
| Material | 8620 Steel |
| Bore Inside Diameter (in) | 0.125 |
| Nose Diameter (mm) | 17.3 |
| Overall Length (mm) | 128.9 |
| Style | Single End |
| Taper Type | BT40 |
| Gage Length (in) | 2.5 |
| Overall Length (in) | 5.07 |
