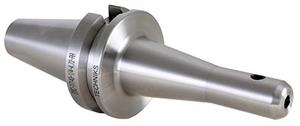

3/16 Inch Diameter x 4.72 Inch, BT40 Precision End Mill Holder
- Item Code: 17140-3/16-4.72-RR
- Brand: Techniks
- Unit Size: 1
Description
Techniks Rigid Reach End Mill Holders have an extra thick neck for improved rigidity and cutting performance. The I.D. hole tolerance is an Industry Leading H5 standard. The Rigid Reach holders are balanced to 10,000 RPM and the taper is ground to AT3 standard for maximum spindle contact. Each holder is individually certified in a lab for accuracy and comes with a detailed performance report.
Features
Back To Top- High precision bore (H5) is best in industry
- Balanced to 15,000 RPM at G6.3
- Taper ground to AT3 for maximum spindle contact
- Techniks Certified for bore and taper tolerances
Tech Specs
Back To Top| Overall Length (mm) | 185.3 |
|---|---|
| Gage Length (mm) | 119.9 |
| Bore Inside Diameter (mm) | 4.8 |
| Nose Diameter (mm) | 19.8 |
| Gage Length (in) | 4.72 |
| Nose Diameter (in) | 0.78 |
| Overall Length (in) | 7.29 |
| Type | End Mill Holder |
| Bore Inside Diameter (in) | 0.1875 |
| Brand | Techniks |
| Style | Single End Rigid Reach |
| Taper Type | BT40 |
| Material | 8620 Steel |
