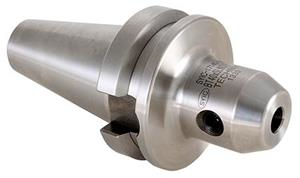

3/4 Inch Diameter x 2.5 Inch, BT40 CoolFLEX Precision End Mill Holder
- Item Code: 17140-3/4F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life. The holders are balanced to 10,000 RPMS and are individually tested in a lab to ensure quality.
Features
Back To Top- High precision bore (H5) is best in industry
- Balanced to 15,000 RPM at G6.3
- Taper ground to AT3 for maximum spindle contact
- Techniks Certified for bore and taper tolerances
Tech Specs
Back To Top| Overall Length (mm) | 128.9 |
|---|---|
| Brand | Techniks |
| Material | 8620 Steel |
| Taper Type | BT40 |
| Bore Inside Diameter (in) | 0.75 |
| Type | End Mill Holder |
| Gage Length (mm) | 63.5 |
| Nose Diameter (in) | 1.75 |
| Style | Single End CoolFLEX |
| Gage Length (in) | 2.5 |
| Overall Length (in) | 5.07 |
| Bore Inside Diameter (mm) | 19.1 |
| Nose Diameter (mm) | 44.5 |
