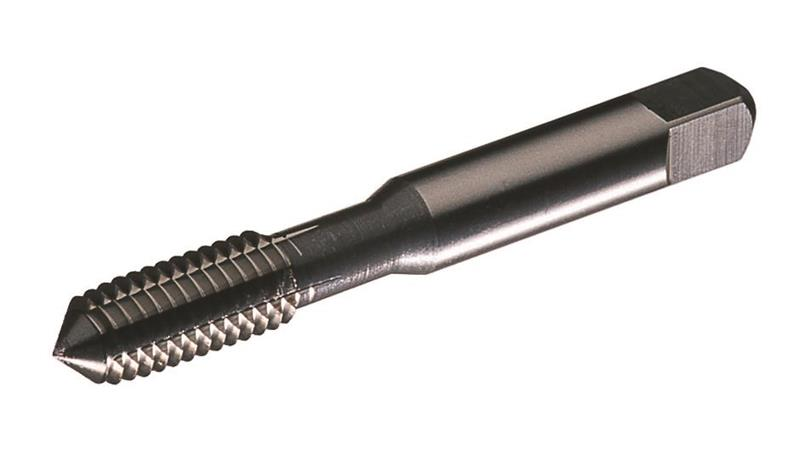

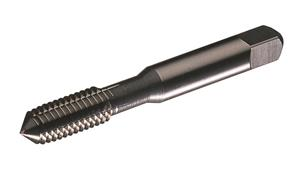

1/4-20 HSS Uncoated H4 Bottoming TRU-LEDE™ Thread Forming Tap
- Item Code: 17242
- Brand: WIDIA
- Unit Size: 1
Description
Series 2502/5502
Machine Screw and Fractional
Bottoming Entry Taper
Blind Holes in General Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Overall Length | 2.5000 Inch |
|---|---|
| Chamfer | Bottoming |
| Square Size | 0.1910 Inch |
| Unit of Measure | Inch |
| Coating | Uncoated |
| Shank Diameter | 0.2550 Inch |
| Thread Length | 15.875 MM |
| Thread Limit | H4 |
| Thread Type | NC/UNC |
| Type | Thread Forming |
| Brand | WIDIA |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
| Diameter | 1/4 - 20 |
| Flute Style | Straight |
| Product Name | Tap |
| Hand of Tool | Neutral |
| Threads Per Inch | 20 |
