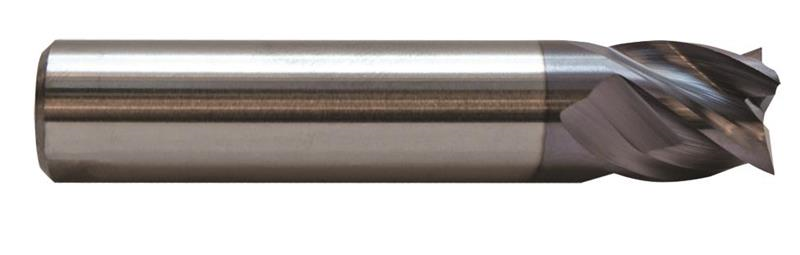

3mm Diameter, 8mm LOC, 57mm OAL Carbide ALtima® Coated TuffCut® XR 4-Flute Variable Helix End Mill with 0.5mm Radius
- Item Code: 17711801A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® XR - Series 177
Variable Helix
Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.
ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Features
Back To Top- Recommended for slotting and general purpose milling
- Very high feed rates & excellent surface finish
- Unique flute geometry allows for increased feeds and speeds while reducing harmonics
- Coated with ALtima® (AlTiN) for extended tool life
Tech Specs
Back To Top| Length of Cut | 8mm |
|---|---|
| Length of Cut | 8mm |
| Material | Solid Carbide |
| Material | Solid Carbide |
| Shank Diameter | 6mm |
| Shank Diameter | 6mm |
| Brand | MA Ford |
| Brand | MA Ford |
| Radius Metric | 0.50 mm |
| Radius Metric | 0.50 mm |
| Metric Cutting Diameter | 3.00 mm |
| Number of Flutes | 4 |
| Metric Cutting Diameter | 3.00 mm |
| Coating | AlTiN |
| Helix | 35°/38° |
| Helix | 35°/38° |
| Overall Length | 57mm |
| Overall Length | 57mm |
| Decimal Cutting Diameter | 0.1181" |
| Decimal Cutting Diameter | 0.1181" |
| Series | Tuff Cut® XR |
| Series | Tuff Cut® XR |
| Type | End Mill |
| Type | End Mill |
