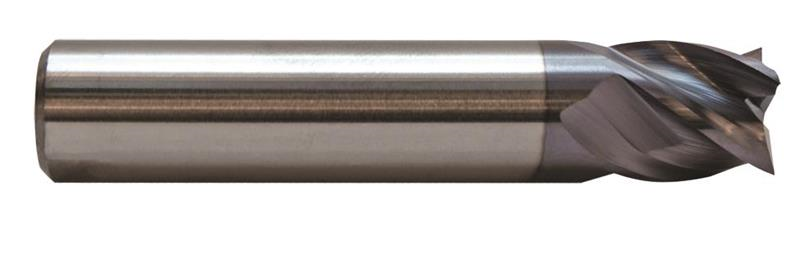

9/32 Inch Diameter, 5/8 Inch LOC, 2-1/2 Inch OAL, Carbide ALtima® Coated TuffCut® XR 4-Flute Variable Helix End Mill
- Item Code: 17728100A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® XR - Series 177
Variable Helix
Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.
ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Features
Back To Top- Recommended for slotting and general purpose milling
- Very high feed rates & excellent surface finish
- Unique flute geometry allows for increased feeds and speeds while reducing harmonics
- Coated with ALtima® (AlTiN) for extended tool life
Tech Specs
Back To Top| Decimal Diameter | 0.2812" |
|---|---|
| Fractional Diameter | 9/32" |
| Coating/Finish | AlTiN |
| Length of Cut | 5/8 Inch |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 Inch |
| Brand | MA Ford |
| Helix Angle | 35°/38° |
| Series | Tuff Cut® XR |
| Shank Diameter | 5/16 Inch |
| Type | End Mill |
