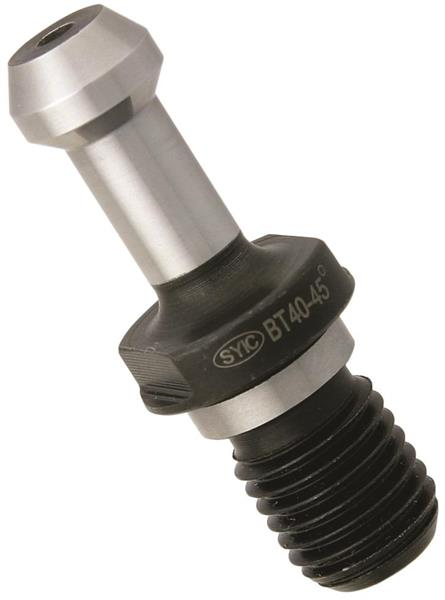

BT40-45° Coolant Pull Stud
- Item Code: 17818-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.
Tech Specs
Back To Top| Knob Diameter | 15mm |
|---|---|
| Neck | 10mm |
| Overall Length | 60mm |
| Spindle Taper | BT40 Taper Holders |
| Threads | M16 |
| Style | Coolant |
| Angle | 45° |
| Diameter | 23mm |
| Brand | Techniks |
| For Use With | BT40 Taper Holders |
| Hole | 4mm |
