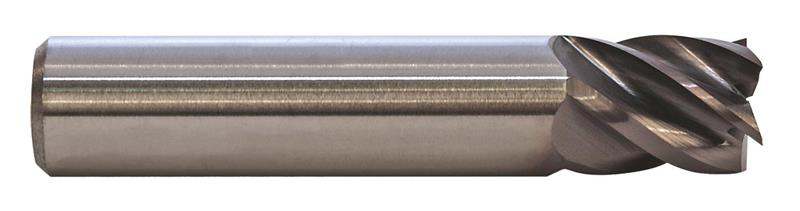

6mm Diameter, 25mm LOC, 75mm OAL, Carbide ALtima® Coated TuffCut® XR 5-Flute End Mill
- Item Code: 17823610A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® XR - Series 178
Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.
ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Features
Back To Top- Designed for extreme productivity
- Gain 20% or more in productivity over 4 flute styles
- Smooth cutting action to eliminate vibration
Tech Specs
Back To Top| Length of Cut | 25mm |
|---|---|
| Overall Length | 75mm |
| Shank Diameter | 6mm |
| Metric Diameter | 6.00 mm |
| Number of Flutes | 5 |
| Brand | MA Ford |
| Decimal Diameter | 0.2362" |
| Helix Angle | 38° |
| Series | Tuff Cut® XR |
| Type | End Mill |
| Coating/Finish | AlTiN |
| Material | Solid Carbide |
